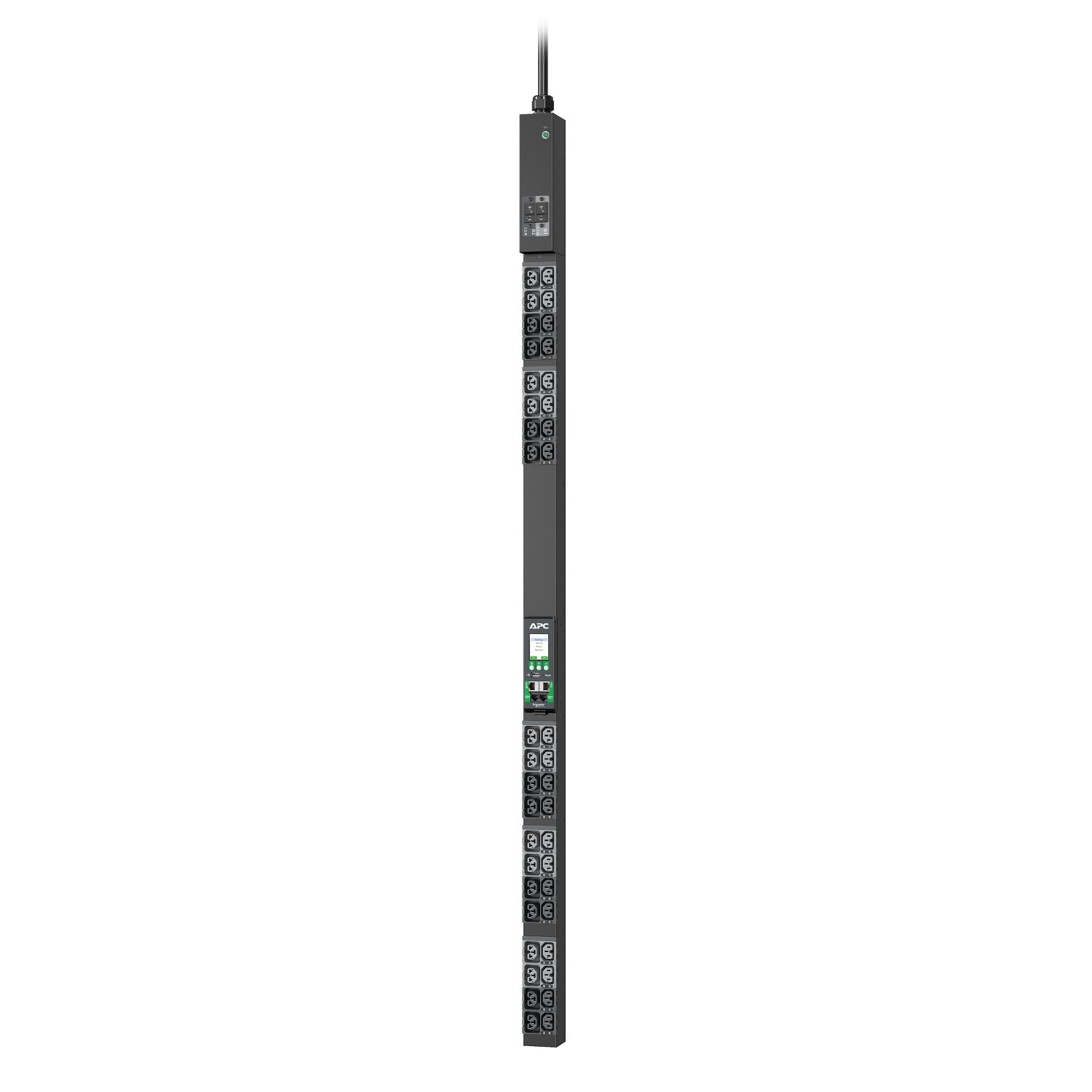

APC NetShelter Rack PDU Advanced, Metered, 7.4kW, 1Phase, 230V, 32A, 332P6, 40 Outlets

In stock

Hitek Business Systems is a trusted and authorized supplier of APC Rack PDUs. The APC NetShelter Rack PDU Advanced provides reliable power distribution for IT equipment in server and networking racks. It features PDU-level metering with remote access and local display, enabling real-time monitoring and alerts for potential overloads.

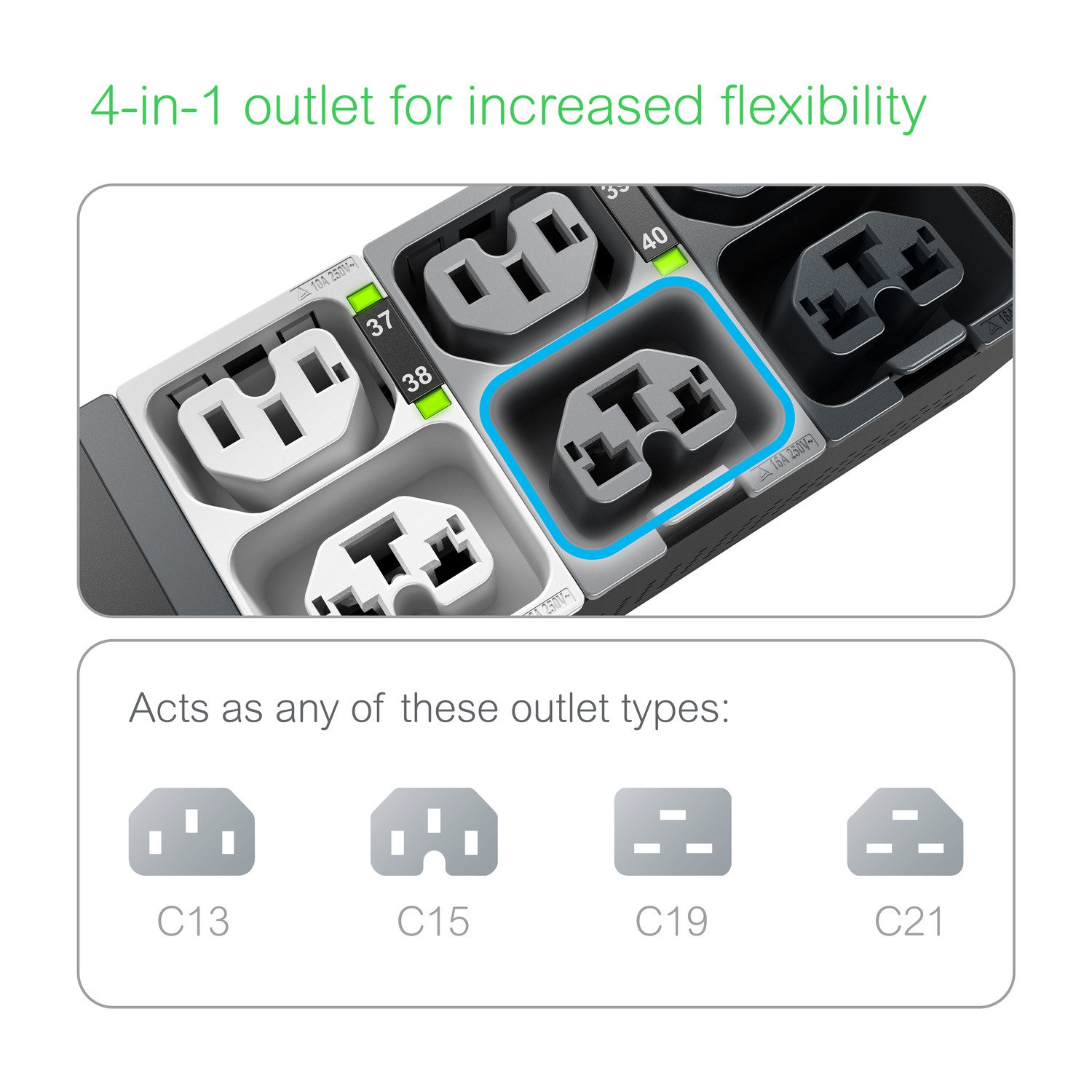

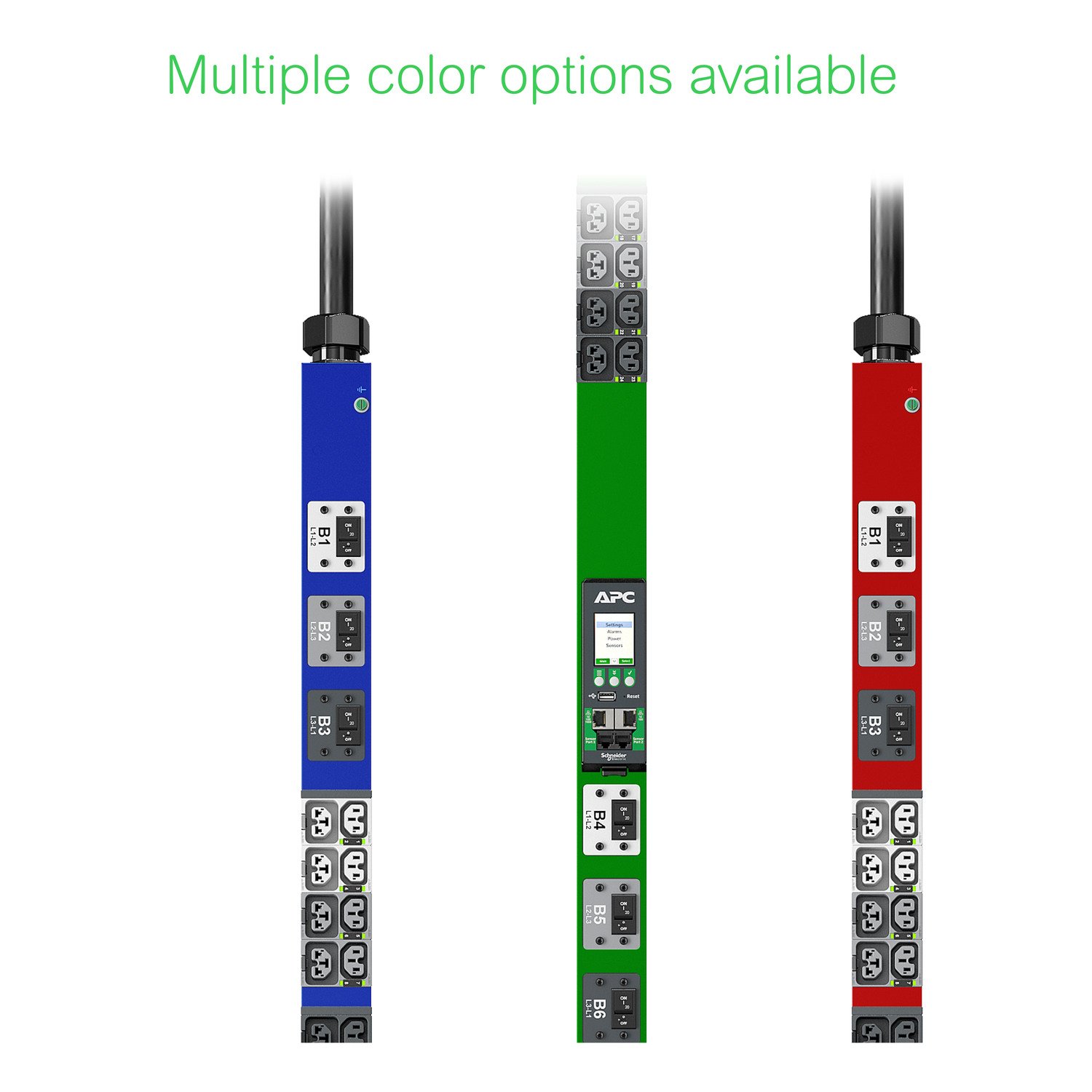

The 4-in-1 combination outlets support C13, C19, C15, or C21 connections, offering maximum deployment flexibility, with up to 40 outlets in a compact 2.2″ form factor. Color-coded outlets simplify setup, while Power Sharing allows cascaded PDUs via two Ethernet ports, keeping the Network Management Card (NMC) operational during AC power loss. The Live Swap NMC can be replaced without powering down devices, minimizing downtime. Rated to operate at 60°C, these PDUs ensure high reliability. Additional features include 1% metering accuracy for precise billing and planning, gigabit Ethernet connectivity, and two optional environmental sensor ports for enhanced monitoring

Main
Colour Black
Product or component type PDU
PDU type Metered
Cord length 3.0 m
Complementary
Input Voltage 230 V 1 phase
Height 1490 mm
Width 56 mm
Output Voltage 230 V
Depth 75 mm
Net weight 6.2 kg
Mounting location Side
Mounting preference No preference
Input Plug Type IEC 60309 32 A 2P + PE
Mounting mode Rack-mounted
Rack units 0U
Mounting position Vertical
Communication port protocol 1000BASE-T
10/100BASE-T
[In] rated current 32 A
Permissible voltage 200…240 V
Input current limits 32 A
Load capacity 7400 VA
Network frequency 50/60 Hz
Outlet type and quantity 20 C13/C15/C19/C21
20C13/C15
Environment
Product certifications TAA compliance
UKCA
Standards CE
EN 62368-1
Ambient air temperature for operation -5…60 °C
Relative humidity 5…95 %
Operating altitude 0…10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0…15240 m
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 172 cm
Package 1 Width 11.6 cm
Package 1 Length 20.8 cm
Package 1 Weight 8.2 kg
Contractual warranty
Warranty 3 years repair or replace
