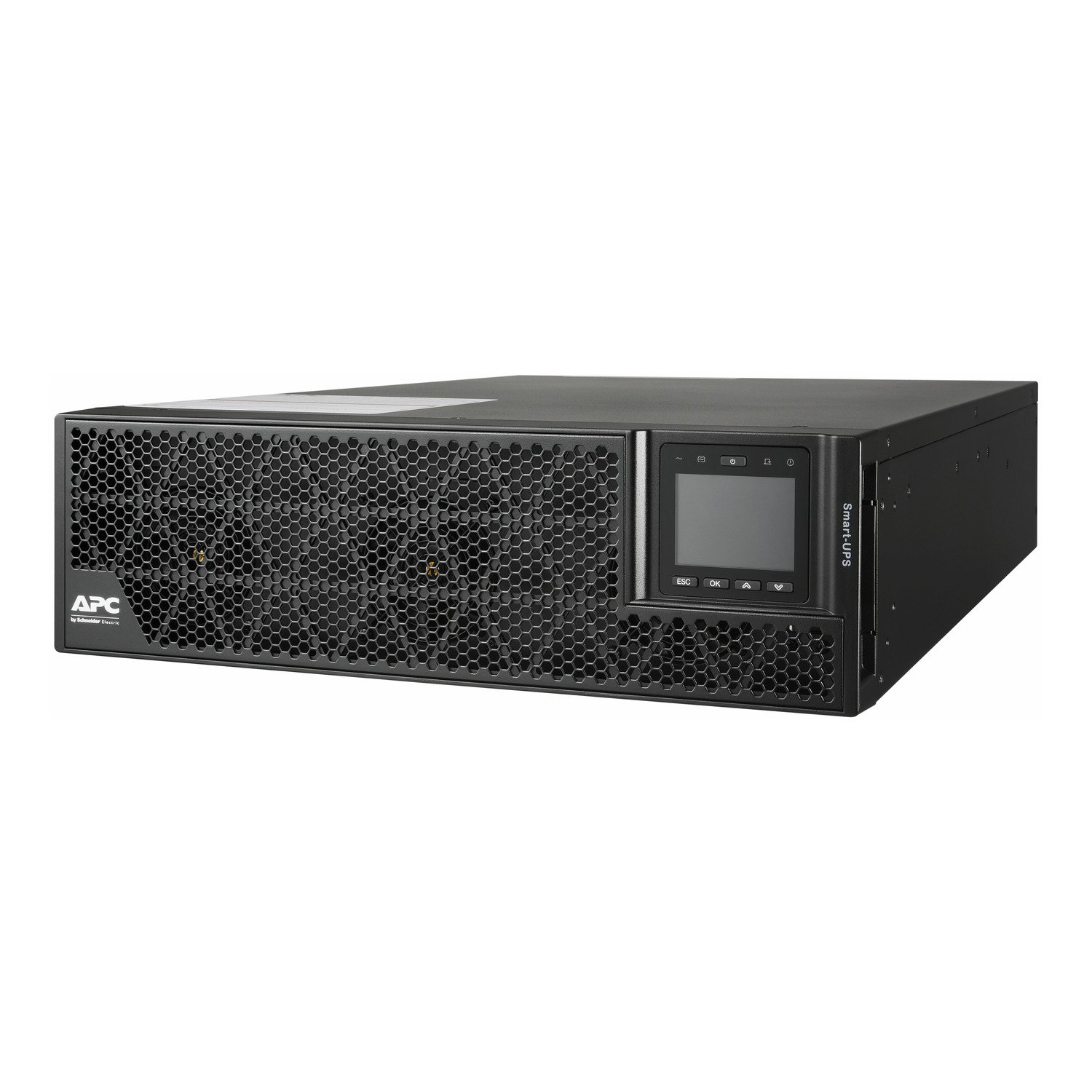

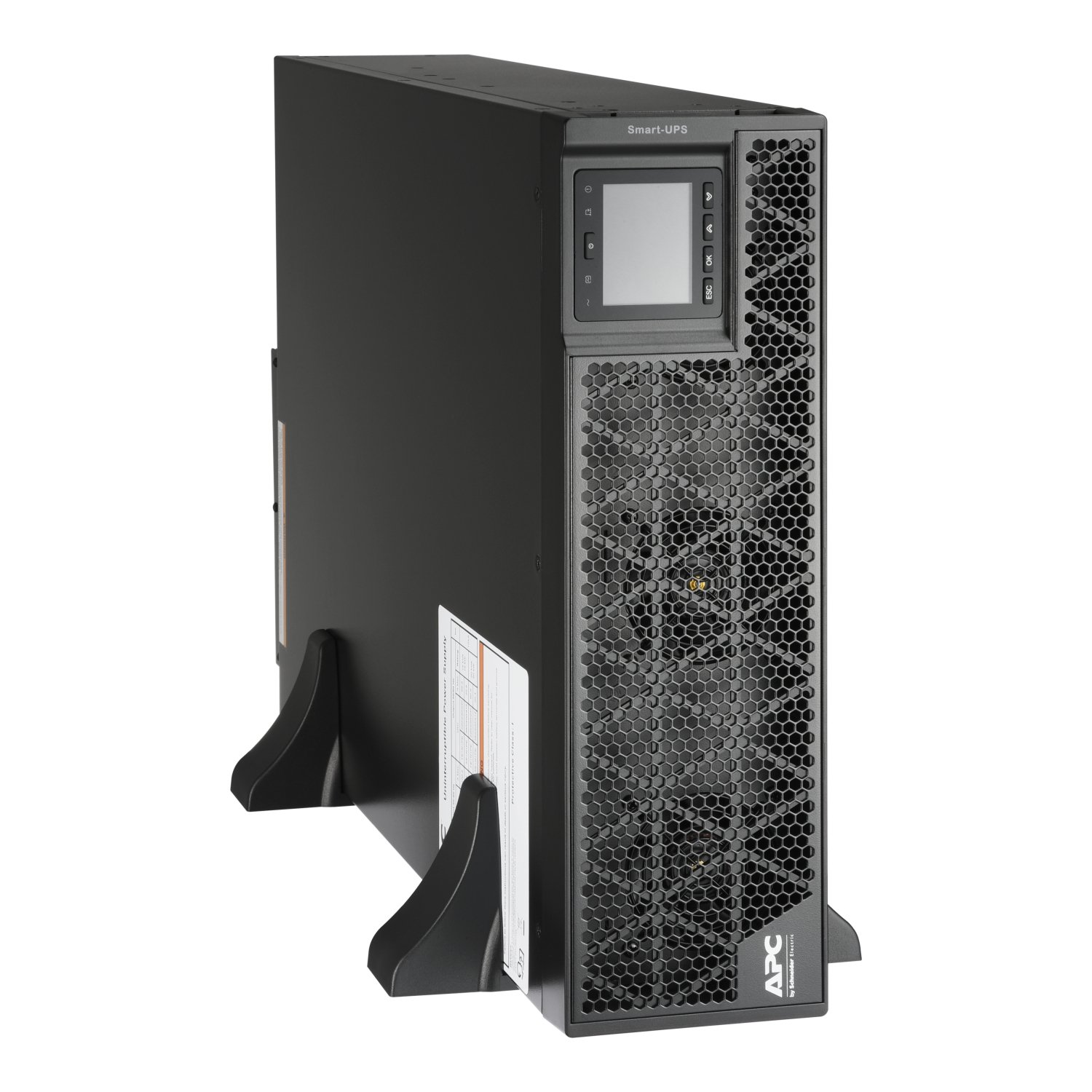

The 20kVA APC Easy UPS On-Line (SRV20KUXI-IN) is a high-density, True Double-Conversion UPS engineered for the most demanding critical applications, including enterprise IT infrastructure, data centers, and industrial equipment. Delivering a robust 20kVA/20kW (Unity Power Factor) of clean, reliable power, this UPS is the foundation for absolute business continuity.
Critical Features for Maximum Uptime
This table highlights the top-tier capabilities of the 20kVA unit (Model: SRV20KUXI-IN).
| Feature | Operational Benefit |
| True Online Double-Conversion | Ultimate Power Quality: Provides constant regeneration of power, offering a pure sine wave output with zero transfer time. This isolates connected equipment from all nine common power problems. |
| Unity Power Factor (20kW / 20kVA) | Maximum Usable Power: With a unity power factor, the UPS provides its full capacity in Watts, ensuring all connected critical loads receive the necessary power without derating. |
| External Battery System Support | Scalable Runtime: Designed to connect to an external battery system ($\pm120V$ nominal), allowing for customizable, extended runtime to meet specific business continuity plans during prolonged outages. |
| High Efficiency | Reduced Operating Costs: Achieves up to 95% efficiency in online mode and up to 97% in ECO mode, significantly lowering energy consumption and heat output (3712 BTU/hr), which saves on cooling costs. |
| Versatile Input Compatibility | Adaptable Installation: Supports both Single-Phase (1P+N+E) and Three-Phase (3P+N+E) input wiring configurations, offering flexibility for installation in diverse electrical environments. |

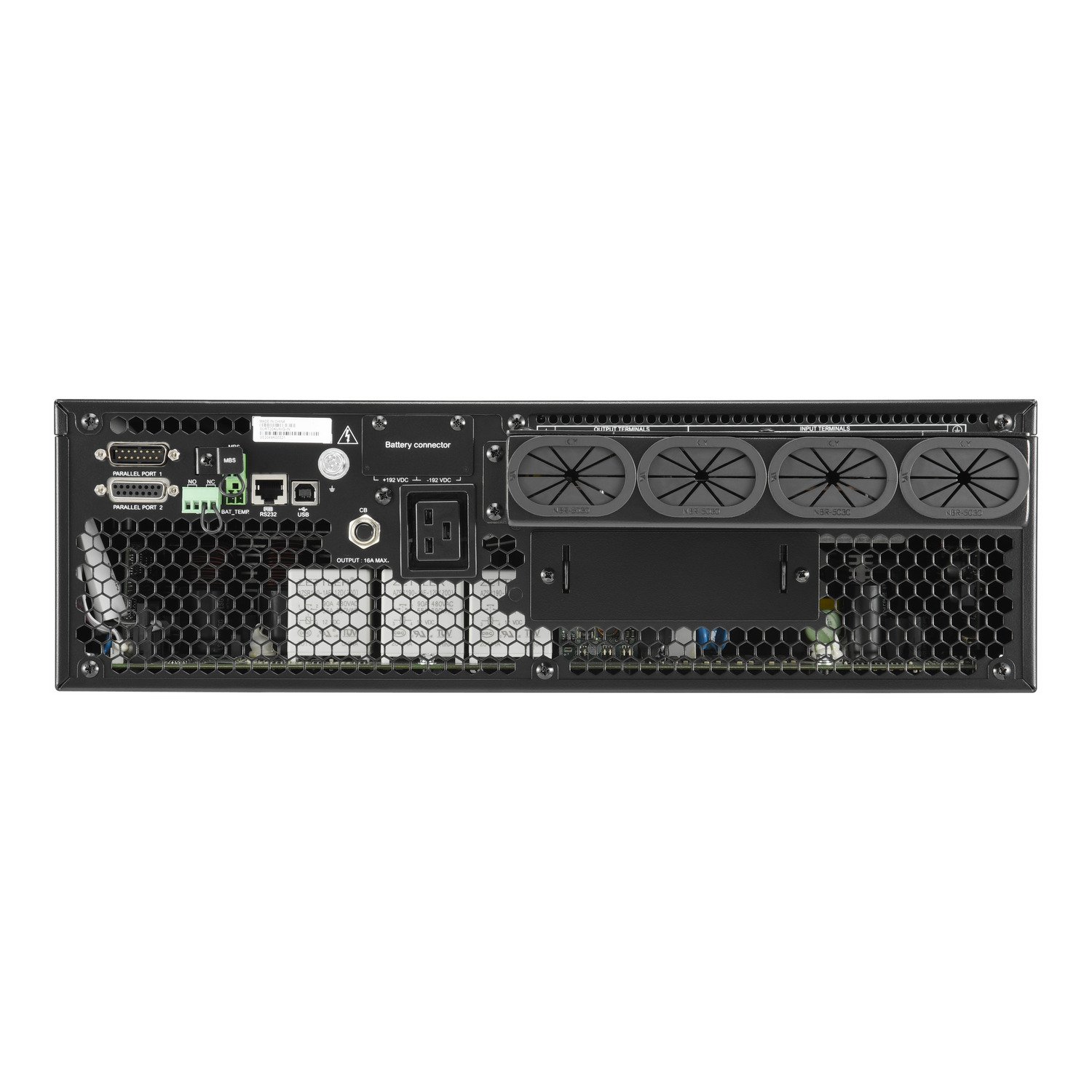

| Hardwire Input & Output | Secure, High-Capacity Connection: Utilizes hardwire terminals for both input and output, ensuring a stable, secure connection capable of handling the full 20kVA load. |
