Brand: Luminous
-
Product SKU / Model: LD10000-Pro
-
Type: True Double-Conversion Online UPS (Single Phase In / Single Phase Out)
-
Capacity: 10 000 VA / 9000 W
-
Output Power Factor: 0.9
-
Output Voltage: 220 V AC (configurable for 200 / 230 V)
-
Output Waveform: Pure Sine Wave
-
Output Frequency: 50/60 Hz ± 3 Hz
-
Load Crest Ratio: 3:1
-
Output Distortion (THD): < 3 %
-
Input Voltage Range: 110 V – 300 V AC
-
Input Frequency Range: 40 Hz – 60 Hz
-
Input Power Factor: > 0.99
-
DC Bus Voltage: 192 V DC (external batteries required)
-
Battery Type: SMF / VRLA compatible (external)
-
Maximum Charger Capacity: ~6 A
-
Display / Interface: Multi-function LCD status & control console (optional SNMP)
-
Dimensions (approx): ~442 × 190 × 318 mm
-
Weight (approx): ~16 kg
-
Efficiency: > 88 % at full load
-
Technology / Features: Microprocessor control, input power-factor correction, automatic bypass, generator compatible, emergency power off (EPO)

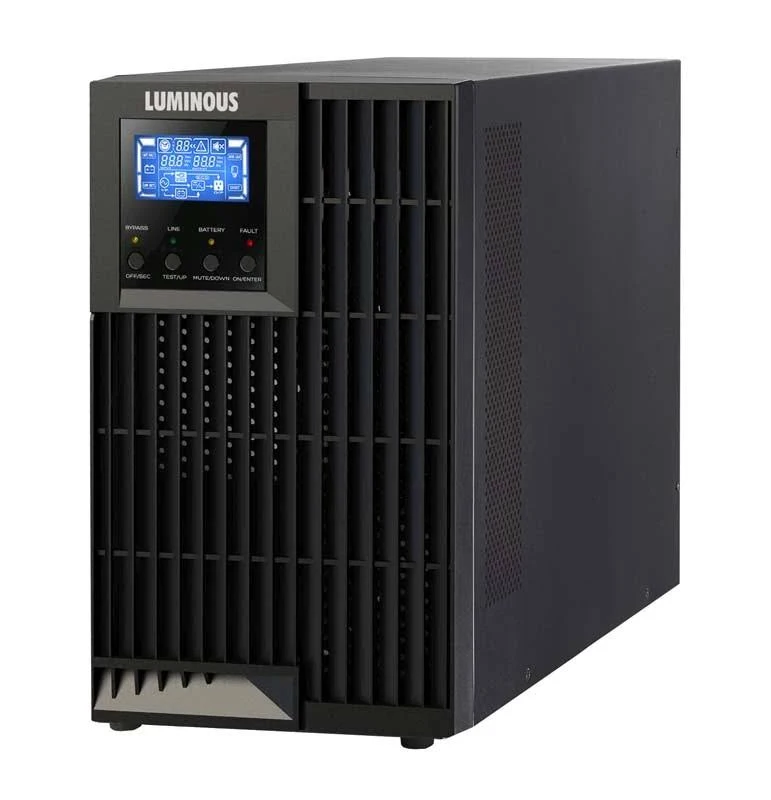

Luminous LD10000-Pro Online UPS
Roll over image to zoom in
The Luminous LD10000-Pro Online UPS is a high-capacity true online double-conversion UPS designed to provide pure sinewave backup power with a 0.9 power factor for mission-critical systems like servers, networking hardware, and industrial electronics. It features wide input voltage tolerance, microprocessor control, and support for an external 192 V battery bank for extended runtime, ensuring reliable, uninterrupted power protection in environments with unstable mains supply.
