Brand: Luminous
-
Product SKU / Model: LD10K3P3P
-
Type: True Double-Conversion Online UPS (3-Phase Input → 3-Phase Output)
-
Capacity of Online UPS: 10 000 VA / ~9 000 W
-
Input Voltage: 3-Phase AC (nominal ~400 V)
-
Input Frequency Range: 46 Hz – 54 Hz (or 56 – 64 Hz)
-
Output Voltage: 3-Phase AC (nominal 400 V)
-
Output Waveform: Pure Sinewave
-
Output Power Factor: 0.9
-
Current Crest Ratio: ~3:1
-
Efficiency: ~88 % – 90.5 %
-
Battery DC Bus Voltage: ~240 V DC
-
Battery Type: External SMF / VRLA (user-supplied)
-
No. of Batteries Required: ~20 (external)
-
Features:
-
Microprocessor control
-
Active power-factor correction on all phases
-
Generator compatible
-
Automatic bypass
-
ECO mode & EPO (Emergency Power Off) options
-
-
Warranty: ~24 months
-
Dimensions (approx): ~592 × 250 × 826 mm
-
Weight (approx): ~54.4 kg

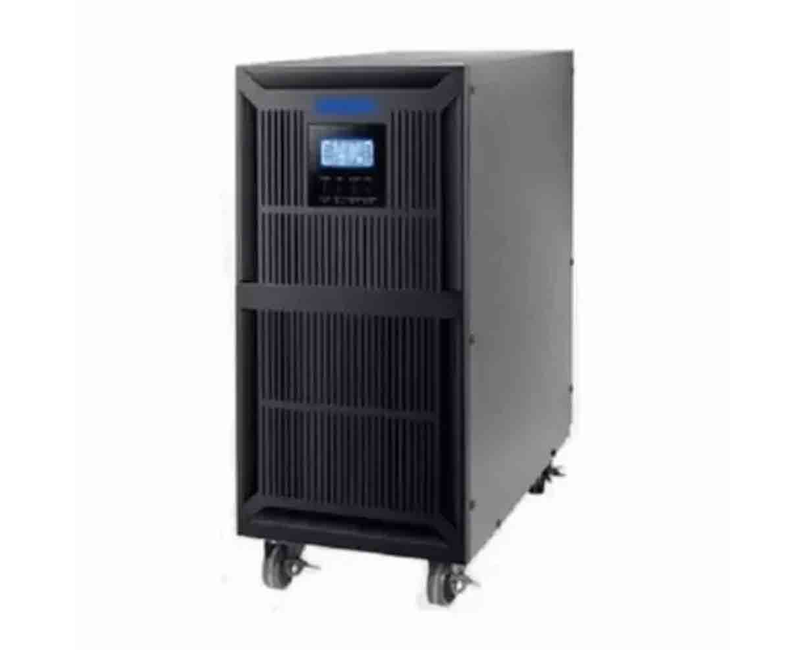

Luminous 10KVA LD10K3P3P Online UPS 3 Phase In 3 Phase Out
Roll over image to zoom in
The Luminous LD10K3P3P Online UPS is a high-capacity, 3-phase-in / 3-phase-out true online double-conversion UPS ideal for industrial and commercial environments. It delivers pure sinewave power with active PFC, wide input range, and robust backup support (external batteries) to protect critical three-phase loads like servers, automation systems, and large power equipment from outages and mains fluctuations.
